I. In-Depth Analysis: Core Concepts and Significance of the Double Column Band Sawing Machine

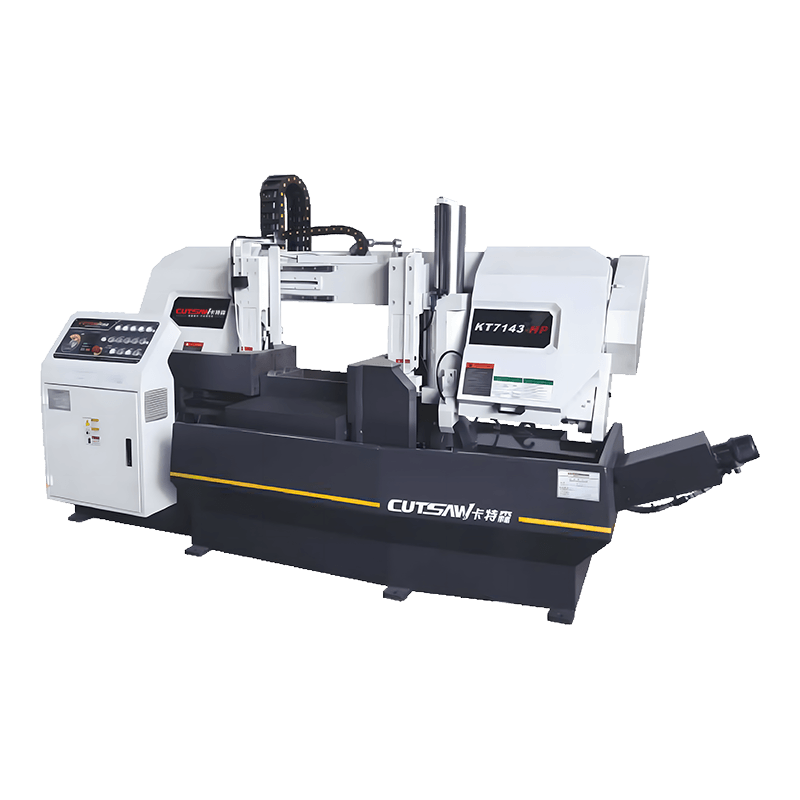

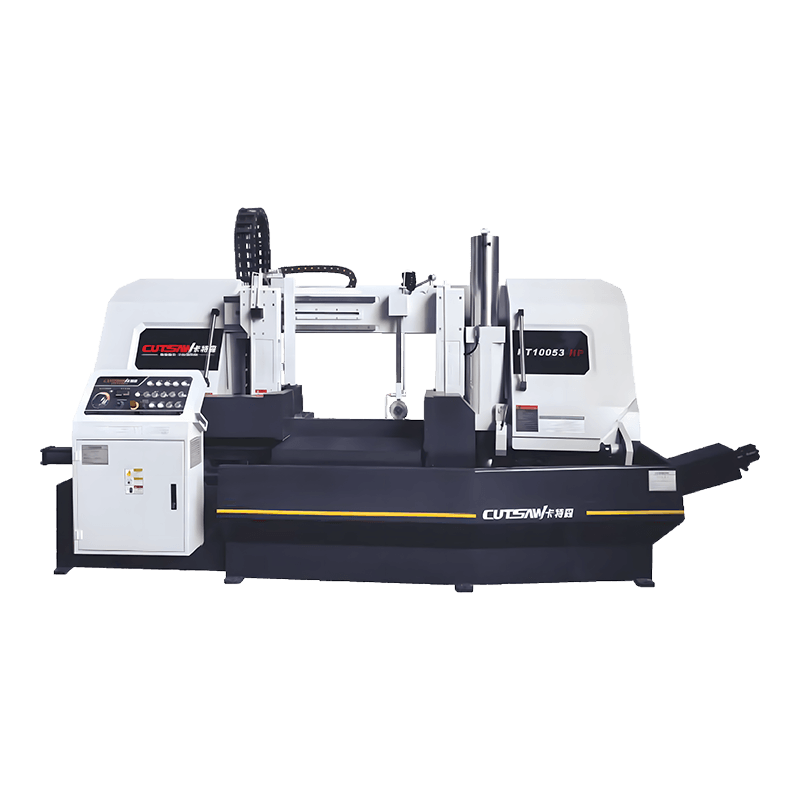

What is a Double Column Band Sawing Machine?
The Double Column Band Sawing Machine is an industrial-grade cutting equipment specifically designed for the high-efficiency and high-precision cutting of large and heavy metal materials. The term “Double Column” refers to its most distinctive structural feature and performance guarantee: the saw frame is vertically guided and supported by two robust columns, rather than using traditional single-column or cantilever designs.
This Double Column structure ensures that the saw frame maintains extremely high rigidity and stability throughout the entire cutting stroke, allowing the saw blade to receive uniform force horizontally and vertically. This guarantees outstanding perpendicularity and flatness of the cut surface.
For manufacturers focused on high-performance equipment, such as Zhejiang Sinaida Machine Tools Co., Ltd., the Double Column Band Sawing Machine is one of their core product lines. Leveraging its strong technical capabilities and advanced manufacturing processes, Zhejiang Sinaida Machine Tools Co., Ltd. has the capacity to design and produce extra-large customized models of the Double Column Band Sawing Machine, with an annual production capacity of 3,600 units, meeting the domestic and international market demand for large-specifications and high-precision sawing.
Why Choose a Double Column Band Sawing Machine?
The modern metalworking industry places increasingly stringent demands on the precision, efficiency, and reliability of material blanking, especially when dealing with high-value and difficult-to-cut materials. The choice of a Double Column Band Sawing Machine is primarily driven by its capacity to handle large workpieces and its unparalleled cutting stability.
1. Parameter Comparison: Double Column vs. Conventional Sawing Machines
| Feature |
Double Column Band Sawing Machine (Double Column Band Sawing Machine) |
Single Column/Cantilever Sawing Machine |
| Structural Rigidity |
Extremely High. Saw frame supported by double columns for balanced load. |
Lower. Saw frame is cantilevered or side-supported, prone to unbalanced loads. |
| Max Cutting Size |
Large/Extra-Large. Suitable for 500mm above heavy workpieces. |
Medium to Small. Cutting dimensions are typically limited. |
| Cutting Accuracy |
High. Excellent performance in perpendicularity and flatness due to structural stability. |
Moderate. Accuracy is easily affected by vibration during large cuts. |
| Suitable Workpiece Weight |
Heavy-Duty. Reliably handles workpieces weighing several tons or more. |
Light/Medium-Duty. Insufficient load capacity and cutting stability for excessive weight. |
| Typical Applications |
Tool steel, large structural steel, aerospace materials. |
Standard steel, batch cutting of small parts. |
2. Consistent Value Proposition
The structural design of the Double Column Band Sawing Machine makes it the optimal choice for processing the following types of workpieces:
- Cutting Large, Heavy Workpieces: When cutting materials with diameters or heights exceeding 500mm, the double column support effectively eliminates saw frame shudder and displacement.
- High-Precision Blanking: In fields like aerospace, which demand extreme precision in material blanking, the stability of the Double Column Band Sawing Machine is fundamental to ensuring subsequent processing quality. The CNC sawing machines from Zhejiang Sinaida Machine Tools Co., Ltd. support China’s aerospace industry and are recognized as a qualified supplier by the China Academy of Launch Vehicle Technology, a clear testament to their high precision and reliability.
- Processing Difficult-to-Cut Materials: For challenging materials such as titanium alloys and superalloys, stable feed rates and minimal vibration effectively protect the saw blade, prolong tool life, and ensure cut quality.
Zhejiang Sinaida Machine Tools Co., Ltd. (established on December 8, 2000, and located at No. 152 Xinggong Road, Huzhen Town Industrial Park, Jinyun County, Lishui City, Zhejiang Province) is a national high-tech enterprise and a provincially recognized innovative enterprise. Its commitment to continuous innovation and expertise in Double Column Band Sawing Machine technology has earned it ISO9001 quality management system certification, China Machinery Safety Certification, and EU CE certification, guaranteeing reliable cutting solutions for customers worldwide.
II. Structure and Principle: Unveiling the Core Technology of the Double Column Band Sawing Machine
The ability of the Double Column Band Sawing Machine to execute heavy-duty, high-precision cutting tasks stems fundamentally from its precise and highly rigid structural design. Its core components work in synergy to ensure stability and reliability throughout the cutting process.

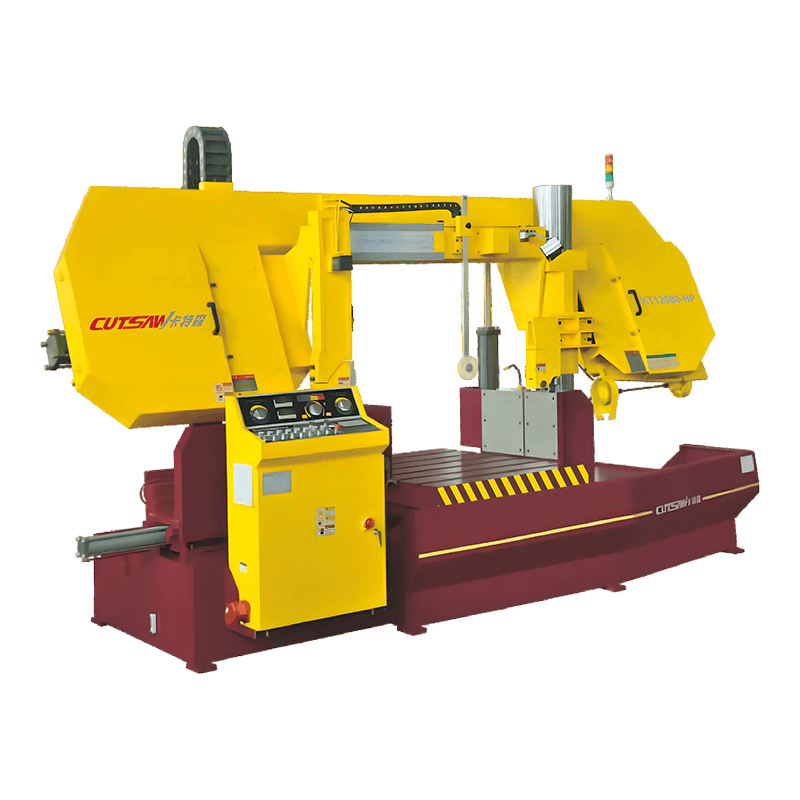

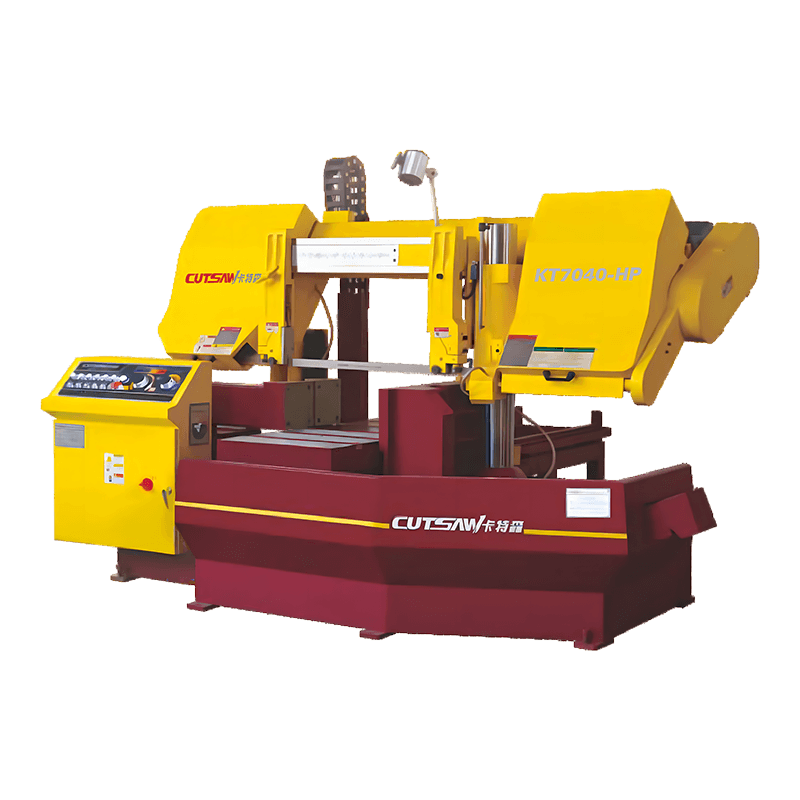

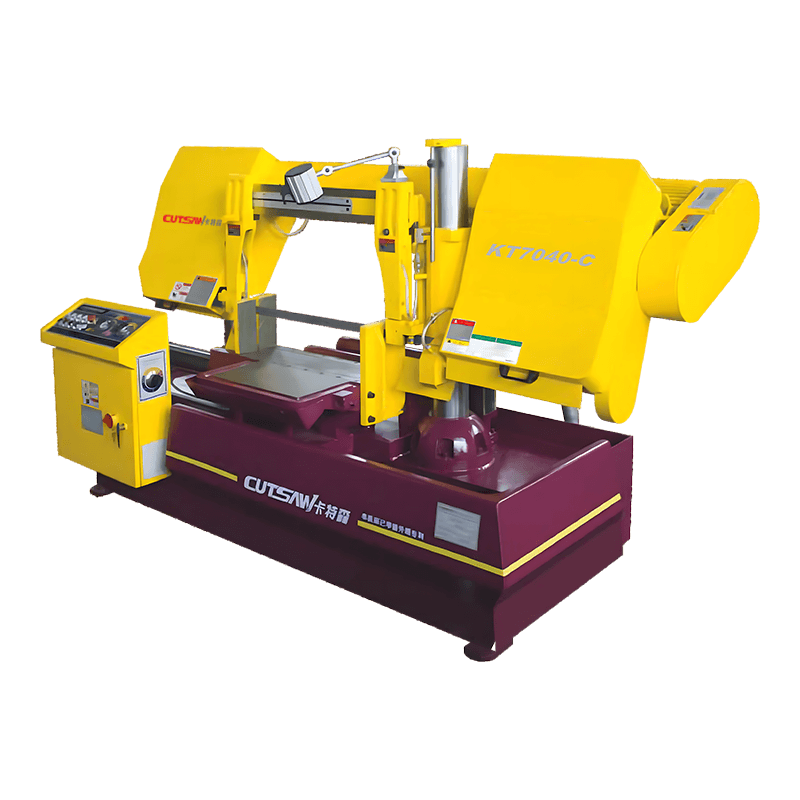

Double Column Structure Detail
The Double Column structure is the performance foundation of the Double Column Band Sawing Machine. It is not merely double support but a high-precision guidance system:
- Column Geometry: It typically consists of two parallel columns perpendicular to the worktable. The two ends of the saw frame are mounted on guide rails on these columns, forming a rigid, enclosed framework.
- Guidance Function: High-precision linear guides or hardened slide blocks are configured inside or outside the columns. Driven by a hydraulic or servo system, the saw frame descends smoothly along these two guides to execute the cutting feed.
- Rigidity and Stability: This design maximally eliminates the off-center load moments inherent in cantilever structures. The double columns uniformly distribute and absorb the reaction forces and vibrations generated during sawing, ensuring the saw blade enters the workpiece at the desired, strictly vertical angle—a critical factor in guaranteeing high-precision cutting.

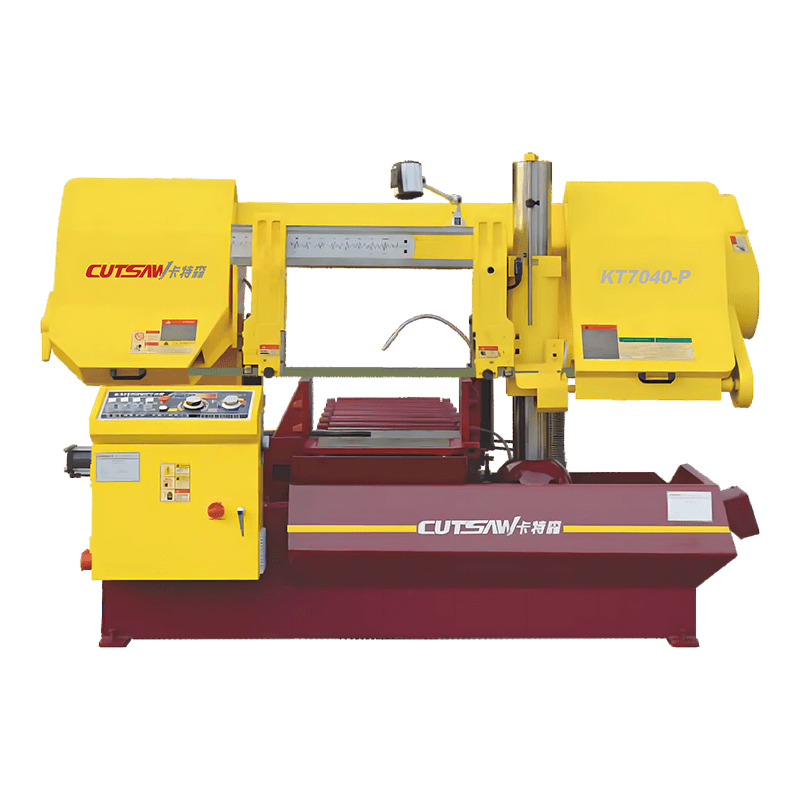

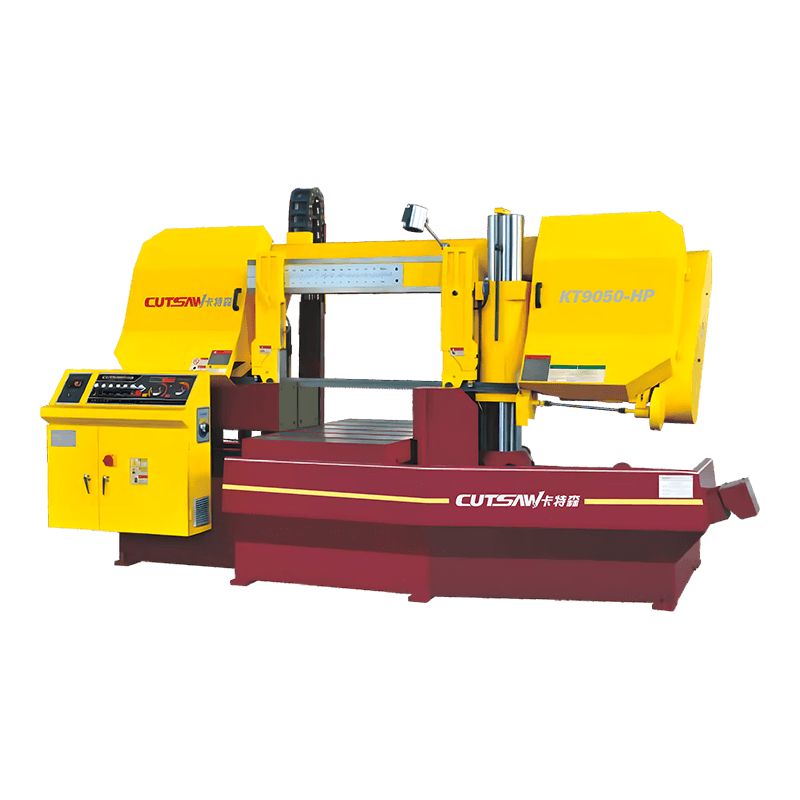

Key Components and Their Roles in the Double Column Band Sawing Machine
1. Saw Frame: High-Rigidity Design
- The saw frame is the main structural component that mounts the saw wheels and the guiding system. In a Double Column Band Sawing Machine, the saw frame typically utilizes a box-type or truss-type welded structure, which undergoes rigorous stress relief to ensure it remains undeformed under prolonged, heavy-duty operation.
- Its high rigidity directly determines the saw blade's vibration suppression capability during high-speed, high-load cutting.
2. Blade Guide System: Precision Assurance
- Located on both sides of the saw frame, close to the cutting area, this system supports and guides the saw blade, preventing it from straying or twisting.
- Modern Double Column Band Sawing Machine models often employ carbide or roller guide blocks. The adjustment accuracy of the guide system directly impacts the perpendicularity and flatness of the cut surface.
3. Feeding System: Achieving Constant Feed Rate
- The feeding system controls the rate at which the saw frame descends for cutting. Double Column Band Sawing Machine models typically use hydraulic cylinders or high-precision servo motors for driving.
- Hydraulic Feed: Simple structure, provides powerful and stable thrust, suitable for cutting large sections and high stock removal.
- Servo Feed: Offers more precise speed control, capable of achieving constant cutting force or constant feed rate, suitable for difficult-to-cut materials or CNC models with strict cutting parameter requirements.
- Zhejiang Sinaida Machine Tools Co., Ltd. as a professional CNC band saw machine manufacturer, typically integrates advanced control technology into its feeding systems to ensure optimal cutting efficiency and surface quality when processing various ferrous and non-ferrous metals, plastics, and other non-metallic materials.
Working Procedure of the Double Column Band Sawing Machine
A complete working procedure for a Double Column Band Sawing Machine includes:
- Workpiece Clamping: The workpiece is firmly secured on the worktable using a hydraulic vise or other clamping devices.
- Saw Frame Descent (Rapid Traverse): The saw frame rapidly descends along the double column guides to a position close to the workpiece.
- Cutting Feed (Working Feed): The feeding system, based on set parameters, drives the saw frame to descend smoothly and uniformly along the Double Column guides at a constant speed or pressure, starting the material cutting process.
- Cut Completion and Return: Once the cut is complete, the feeding system stops, and the saw frame rapidly returns to its original position, ready for the next cutting cycle.
Throughout this process, the Double Column structure maintains its high-rigidity advantage, ensuring the saw blade remains in an ideal state of force, which is fundamental to guaranteeing cut quality, especially for large workpieces. Zhejiang Sinaida Machine Tools Co., Ltd. possesses an excellent management and R&D team, along with well-equipped facilities and advanced production technology, allowing the company to constantly refine the structural design and key component manufacturing of the Double Column Band Sawing Machine, thereby ensuring its CNC sawing machines exhibit international leading reliability and performance.
III. Technical Advantages and Applications: The Value Embodiment of the Double Column Band Sawing Machine
The core value of the Double Column Band Sawing Machine lies in the superior performance delivered by its structure, enabling it to handle the most challenging cutting tasks in modern industry. This machine is more than just a cutting tool; it is a guarantee of productivity for efficient and precise material blanking.
Core Technical Advantages of the Double Column Band Sawing Machine
The technical advantages provided by the Double Column design are multifaceted and interconnected:
| Technical Advantage |
Double Column Band Sawing Machine Performance |
Performance Metrics Improvement |
| High Precision |
Saw frame movement is precisely guided by high-rigidity double columns, eliminating lateral displacement and torsion. |
Perpendicularity and flatness of the cut surface can typically be controlled within 0.2 mm/100 mm. |
| High Efficiency |
The machine allows for the use of higher blade tension and more aggressive feed rates, reducing cutting time. |
Feed rates can be 15% ~ 30% higher than ordinary sawing machines, especially noticeable when processing large sections. |
| High Rigidity/Vibration Damping |
The saw frame is uniformly loaded across two support points, effectively absorbing and dissipating cutting vibrations. |
Reduces blade chatter, extending the service life of the blade and guide components by over 30%. |
| Long Service Life |
Structural components have rational load distribution and uniform wear, significantly extending the lifespan of key components like guide rails and saw wheels. |
Substantially lowers maintenance frequency and long-term operating costs. |
These advantages make the Double Column Band Sawing Machine the preferred equipment for demanding blanking tasks. Zhejiang Sinaida Machine Tools Co., Ltd. leverages its strong technical expertise and advanced manufacturing processes to ensure that its Double Column Band Sawing Machine products fully realize these technical advantages, meeting customer demands for long-term stability and high-precision cutting.
Typical Application Scenarios for the Double Column Band Sawing Machine
The application scope of the Double Column Band Sawing Machine is extensive, being indispensable in areas requiring the cutting of heavy-duty, high-value or specialized performance materials:
- Heavy Industry and Energy Sector: Cutting large ingots, billets, and mold steel, such as materials used for manufacturing automotive molds or large mechanical components. Processing thick-walled pipes and structural steel used in the oil and gas industries.
- Aerospace and Military: Performing precise blanking of challenging, high-value special alloys like titanium alloys and nickel-based superalloys. In these fields, material costs are high, and cutting precision demands are stringent, making the high stability of the Double Column Band Sawing Machine critical. The recognition of Zhejiang Sinaida Machine Tools Co., Ltd.'s CNC sawing machines as a qualified supplier by the China Academy of Launch Vehicle Technology fully demonstrates the exceptional quality and reliability of its Double Column Band Sawing Machine products in supporting national aerospace efforts.
- Machinery Manufacturing and Large-Scale Engineering: Batch cutting of large shafts, beams, and profiles, ensuring high consistency in blanking dimensions.
Case Study: Concrete Benefits Delivered by the Double Column Band Sawing Machine
In a heavy machinery manufacturing plant, traditional single-column sawing machines cutting 800 mm diameter mold steel experienced long cutting times and significant perpendicularity errors due to vibration and insufficient rigidity, necessitating an extra milling process for correction.
After introducing a Double Column Band Sawing Machine from Zhejiang Sinaida Machine Tools Co., Ltd., the stable Double Column guidance and high-power drive not only increased the cutting speed by 25% but also reduced the perpendicularity error of the cut surface to a negligible range, completely eliminating the subsequent correction process. The direct benefits were:
- Reduced Production Cycle: Faster blanking efficiency accelerates the overall manufacturing cycle.
- Material Costs Lowered: Reduced material waste caused by cutting deviations.
- Improved Processing Quality: Provides higher quality blanks, laying a solid foundation for subsequent high-precision machining.
Zhejiang Sinaida Machine Tools Co., Ltd., as a professional CNC band saw machine manufacturer with a strong R&D team and an annual capacity of 3,600 units, is committed to providing customers with cost-effective and efficient solutions through its high-standard Double Column Band Sawing Machine products.
IV. Selection and Maintenance: Maximizing the Performance of the Double Column Band Sawing Machine
Correct selection and maintenance of the Double Column Band Sawing Machine are essential for ensuring its long-term high precision and efficiency. Given that this type of equipment is typically used for processing high-value materials and heavy-duty tasks, equipment management is crucial.

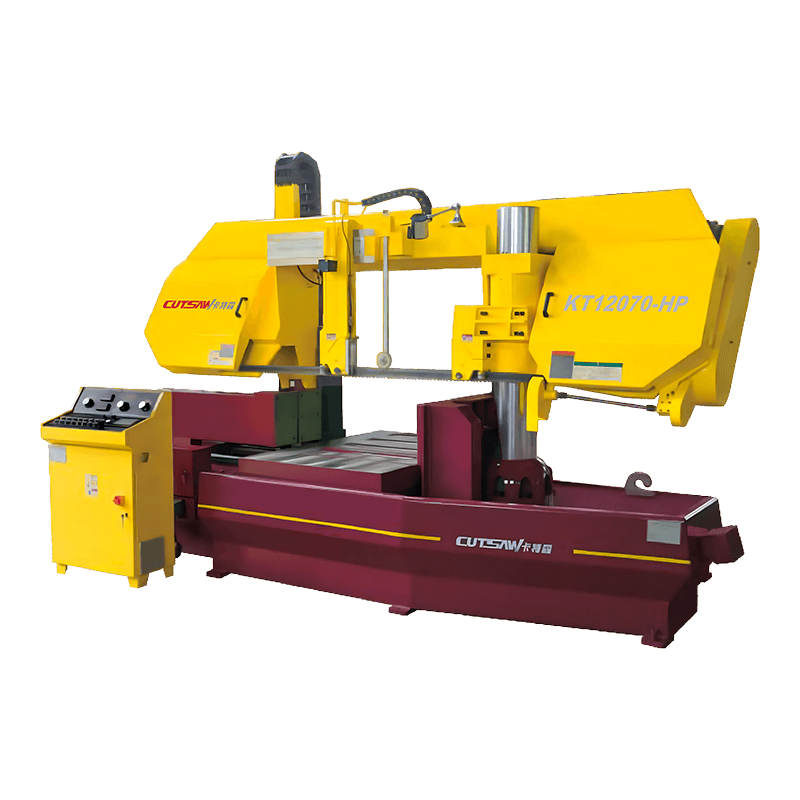

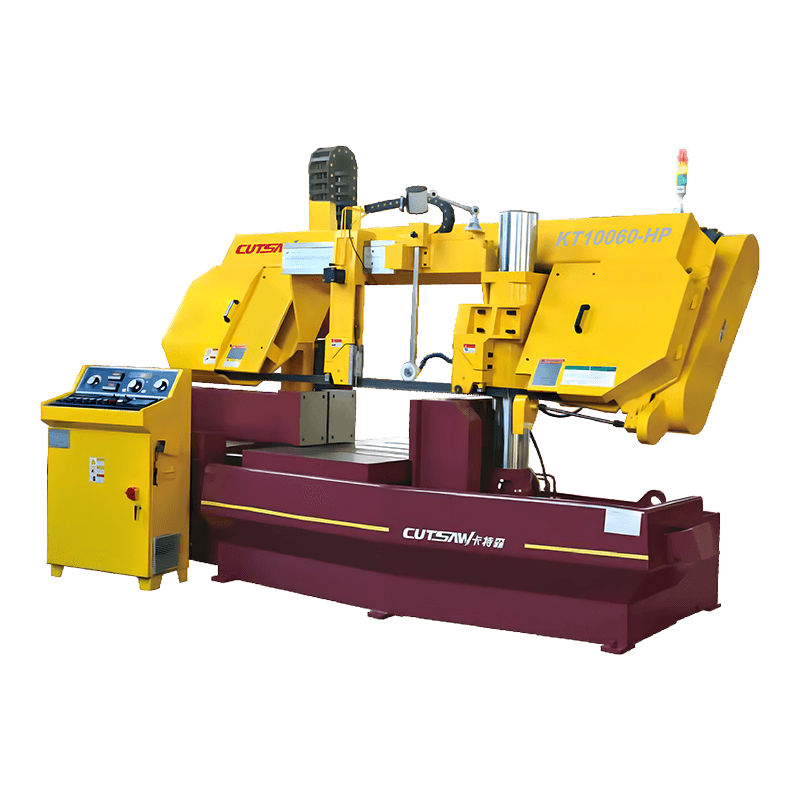

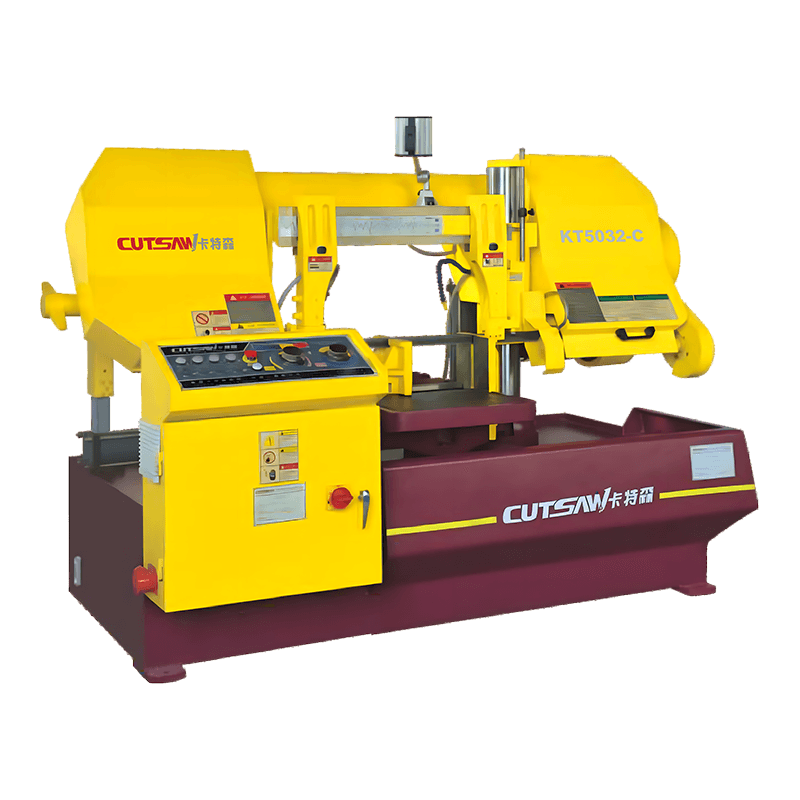

How to Select the Appropriate Double Column Band Sawing Machine Model
When investing in a Double Column Band Sawing Machine, a detailed assessment of specific machining needs is required to ensure the selected equipment can fully leverage the performance advantages of its Double Column structure.
| Consideration Factor |
Evaluation Points |
Double Column Band Sawing Machine Selection Advice |
| Cutting Capacity |
Max diameter/width, length, and weight of the workpiece to be cut. |
The machine's throat depth (max cutting width) and load capacity must have a 10% ~ 20% margin. |
| Automation Level |
Need for mass production, or for unattended night operation. |
Select fully automatic or semi-automatic models; for mass production, a CNC Double Column Band Sawing Machine with feeding and counting functions is recommended. |
| Drive System |
Requirements for cutting precision and handling difficult-to-cut materials. |
Hydraulic feed is suitable for standard heavy-duty cutting; Servo feed (CNC models) provides more precise pressure and speed control, especially for alloy materials. |
| Clamping System |
Need to handle bundled materials or irregular shapes. |
Evaluate the clamping force and rigidity of the vise, and whether it has hydraulic floating or angle cutting capabilities. |
As a professional CNC band saw machine manufacturer with an annual capacity of 3,600 units, Zhejiang Sinaida Machine Tools Co., Ltd. (located at No. 152 Xinggong Road, Huzhen Town Industrial Park, Jinyun County, Lishui City, Zhejiang Province) can provide a range of standardized and customized Double Column Band Sawing Machine models, covering needs from semi-automatic to fully automatic CNC. Customers can select the most suitable model based on their specific applications, such as precision blanking for the aerospace sector or heavy industry's large steel cutting, thereby maximizing the equipment's value.
Routine Maintenance and Upkeep for the Double Column Band Sawing Machine
The long-term stable operation and, specifically, the highly prized precision of the Double Column Band Sawing Machine, rely heavily on periodic maintenance. Core maintenance work focuses on ensuring the cleanliness and lubrication of the Double Column guiding system.
- Double Column Guide Rail Maintenance:
- Daily removal of chips and coolant residue from the column guide rails.
- Regularly check the guide rail lubrication system (e.g., centralized lubrication system) to ensure sufficient and clean supply of lubricating oil or grease. Guide rail lubrication is a primary cause of reduced cutting accuracy.
- Saw Blade System Check:
- Tension Adjustment: Maintain the saw blade tension within the manufacturer's specified range; too loose leads to deviation, too tight accelerates the wear of saw wheel bearings and the blade.
- Guide Block Inspection: Periodically check the wear condition of the carbide or roller guide blocks, ensuring they support the saw blade tightly and correctly, which is critical for achieving precise cuts.
- Hydraulic and Cooling Systems:
- Regularly replace hydraulic fluid and coolant, and clean filters, to ensure the normal operation of the feeding and cooling systems and extend the equipment's lifespan.
Saw Blade Selection and Optimization
Even the most advanced Double Column Band Sawing Machine ultimately depends on the saw blade used for its cutting performance.
- Material Selection: Choose appropriate Bi-metal or Carbide-tipped saw blades based on the hardness and toughness of the material being cut.
- Tooth Shape and Pitch: The tooth shape (e.g., hook teeth, straight teeth) and pitch (TPI) must match the cross-sectional size and material type of the workpiece. For large solid blocks, a coarse pitch should be selected to ensure sufficient chip clearance.
- Zhejiang Sinaida Machine Tools Co., Ltd.'s equipment is certified with ISO9001 and China Machinery Safety Certification, with designs that fully consider the compatibility between the saw blade and the machine. Correct saw blade selection, combined with the stable structure of the Double Column Band Sawing Machine, enables faster cutting speeds, longer blade life, and ultimately lower cutting costs per unit part.
V. Frequently Asked Questions (FAQ)
This section compiles the most common technical and application questions encountered by customers when using and selecting a Double Column Band Sawing Machine.
Q1: What special requirements does the Double Column Band Sawing Machine have when cutting difficult-to-cut materials like stainless steel?
A: Cutting difficult-to-cut materials such as stainless steel, tool steel, or superalloys imposes higher demands on the Double Column Band Sawing Machine, mainly in the following aspects:
- Rigidity and Stability: Difficult-to-cut materials require greater cutting force and lower cutting speeds. The exceptional rigidity provided by the Double Column structure of the Double Column Band Sawing Machine is the foundation for ensuring the saw blade does not wander and that no vibration marks are produced.
- Feed Control: A precise feed control system (usually a servo-driven CNC system) must be used to achieve “constant force cutting” or extremely slow and stable feed rates, preventing blade breakage or tooth chipping due to uneven stress.
- Cooling and Lubrication: High-pressure, high-flow cutting fluid is needed, precisely directed at the cutting zone, to dissipate the significant amount of heat generated, preventing overheating of the workpiece and the saw blade.
Zhejiang Sinaida Machine Tools Co., Ltd., leveraging its R&D capabilities as a national high-tech enterprise, provides high-end CNC Double Column Band Sawing Machine models specifically engineered for these demanding applications, effectively addressing the challenges of difficult-to-cut materials and ensuring efficient, high-quality blanking.
Q2: How to resolve the "slant cut" problem when using a Double Column Band Sawing Machine?
A: Cutting deviation or "slant cut" is a common issue affecting the precision of the Double Column Band Sawing Machine. The root cause is the saw blade losing its perpendicularity during the cutting process. The solution typically involves systematic inspection and adjustment:
| Inspection Area |
Potential Problem |
Solution |
| Saw Blade System |
Insufficient blade tension or uneven tooth wear. |
Adjust blade tension to the recommended value; replace the saw blade. |
| Guide System |
Wear or improper adjustment of the guide blocks (e.g., carbide blocks or rollers) on the Double Column. |
Inspect and readjust or replace guide blocks to ensure the saw blade is uniformly supported on both sides. |
| Machine Structure |
Double Column guide rails lubrication is insufficient or there are residual chips. |
Thoroughly clean and lubricate the guide rails; check the hydraulic feed system for smooth operation. |
| Operating Parameters |
Feed rate is too fast or blade speed is set improperly. |
Reduce the feed rate, especially upon entering/exiting the workpiece; adjust the blade line speed to match material hardness. |
Only when the Double Column guidance system of the Double Column Band Sawing Machine is maintained in optimal condition can the vertical stability of the saw blade be guaranteed. Zhejiang Sinaida Machine Tools Co., Ltd.'s equipment undergoes strict inspection and calibration before leaving the factory, and users are advised to strictly adhere to the provided maintenance protocols to maintain the machine's long-term cutting accuracy.
Q3: What is the significance of automation and CNC (Computer Numerical Control) functions for modern Double Column Band Sawing Machines?
A: Automation and CNC functions significantly broaden the application value of the Double Column Band Sawing Machine, transforming it from a simple cutting tool into a critical part of smart manufacturing.
- Increased Production Efficiency: CNC functions allow for pre-setting and storing multiple cutting programs, enabling continuous, unattended cutting and batch blanking, including automatic feeding, clamping, and counting.
- Optimized Cutting Parameters: The CNC system can automatically adjust the saw blade line speed and feed rate based on different materials and sizes, achieving optimal cutting efficiency and blade life. For example, it can achieve stepless speed variation of the feed rate during cutting.
- Accuracy Assurance: The precise CNC servo feed system, combined with the rigidity of the Double Column structure, delivers cutting accuracy and repeatability far superior to semi-automatic models.
Zhejiang Sinaida Machine Tools Co., Ltd. specializes in the R&D and manufacturing of CNC band sawing machines. Its products support complex automation requirements, which is why the company has gained recognition from clients like the China Academy of Launch Vehicle Technology and is highly popular in both domestic and international markets. The company’s capability to undertake the design and production of extra-large customized models demonstrates its leading position in Double Column Band Sawing Machine CNC technology.
