G5350/110-260 G5360/40-100 High Speed Rotation CNC Beam Band Sawing Machine Servo Motor Power Hydraulic

Main features of the machine

● Feeding material adopt dual bilinear guide rail with high precision, low abrasion and long lifetime.

● Work piece feeding adopt transducer step less adjustable , feeding stable.

● Can install hydraulic feeding material flat, convenient to material feed.

● Work table design is reasonable, convenient for change blade.

PREV：G5335/35-100 G5340/40-200 High Quality Vertical Metal Band Sawing MachineNEXT：G5360-80-260 G5385-100-350 Metal Steel Cutting Sawing Vertical Band Saw machines

Product Description

Contact Form

High Speed Rotation CNC Beam Band Sawing Machine Servo Motor Power Hydraulic adopts advanced CNC technology, equipped with high-speed rotating saw band and servo motor drive system, capable of precise and fast cutting operations. Its core hydraulic system provides strong power support, allowing the equipment to operate stably in the most demanding working environment. It is equipped with a high-speed rotating band saw system, using the latest saw band design and advanced high-speed steel technology to ensure high speed and efficiency during the cutting process. The rotating saw band system can quickly cut a variety of hard materials, and due to its fast rotation characteristics, it can effectively reduce the heat and stress generated during the cutting process.

Products brand

Max process
dimension(mm)

Blade process
speed(m/min)

Work tensioning form

Blade specification
(mm)

Power of main
motor(kw)

Load-bearing capacity
of the working table(kg)

Packing size(mm)

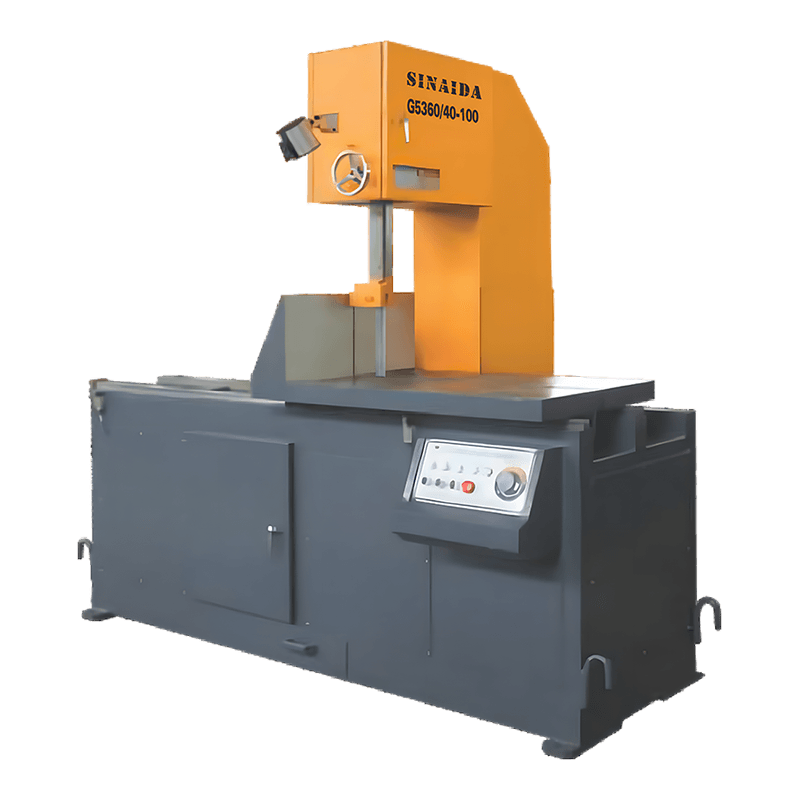

G5360/40-100

600×400×1000
(Height × Throke × Stroke)

18-80
Frequency conversion stepless speed

Manual

1.3×41×6660

7.5

10000

3900×3250×3160

G5350/110-260

500×1100×2600
(Height × Throke × Stroke)

18-80
Frequency conversion stepless speed

Manual

1.6×54×7080

11.0

20000

5100×4100×3500
