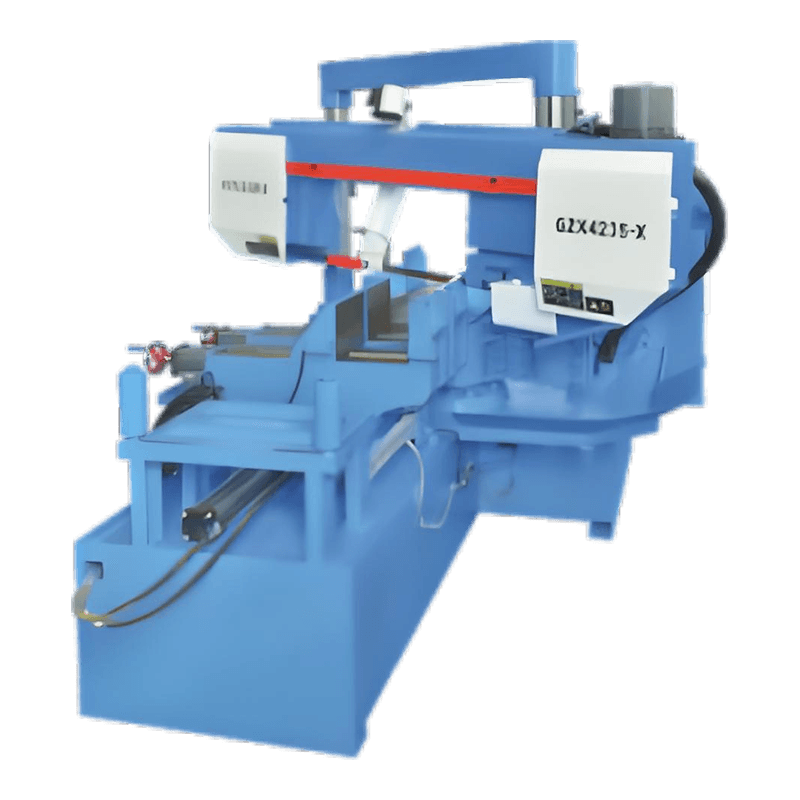

GZX4235-X NC Rotate Band Saw Macine(Servo)

Main features of the machine

● CNC band saw machine series apply to large batch same material cutting at the same time, it is havethe advantage of high cutting speed, high efficiency, stable, energy-saving, saving material. Can be expected with a small beam clamping device.

● Adopt manual operate, full-automatic and matches emergency off device function. hydraulic feed-in and tightclamping work, stepless adjustable, Automatic shutdown protect equipment.

● Man-machine interface replace the function of traditional control panel, digital setting, indicator lamp etc. display the equipment state , operation instruction and parameter setting.
All the setting can finish on the man-machine interface, all the information are English, convenient to operate.

● PLC (programmable logic controller) set the cutting /sawing whole process automatically

● Feeding length of work piece uses grating ruler, to lerance less than 0.2mm, can set 5 group sawing parameter by once.

PREV：GZX4240-X NC Rotate Band Saw Macine(Servo)NEXT：No next article

Product Description

Contact Form

Products brand GZX4235-X
Max process dimension(mm) 0° Height 350 Width 500 45° Height 350 Width 350
Blade process speed(m/min) 18-80 Frequency stepless speed regulation
Work tensioning form Hydraulic/Manual
Blade specification(mm) 1.1×34×4460
Power of main motor(kw) 4.0
Power of Oil-pump motor(kw) 0.75
packing size(mm） 2100×2400×1900
