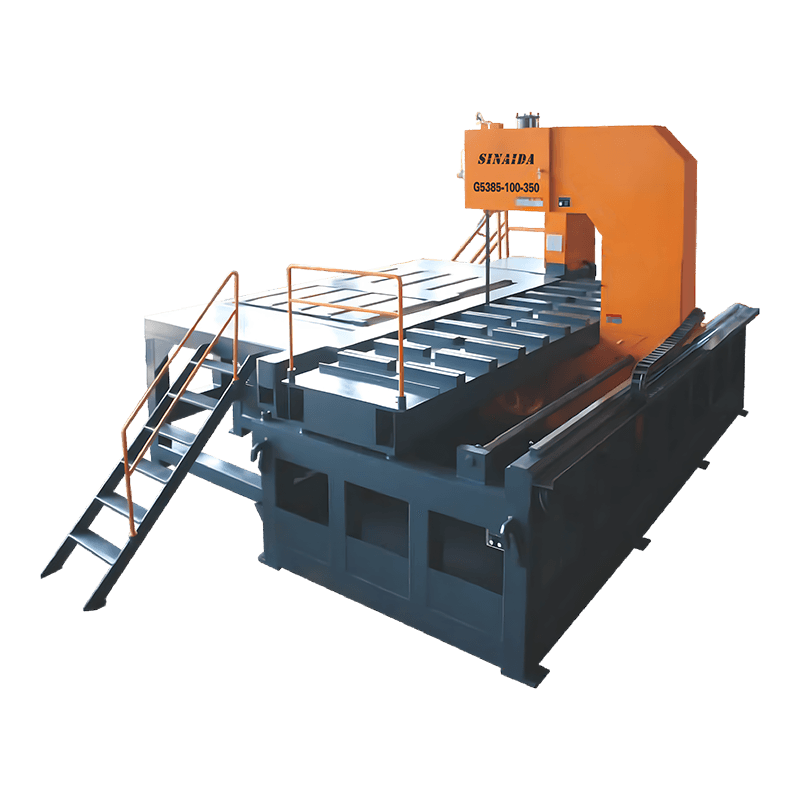

G5360-80-260 G5385-100-350 Metal Steel Cutting Sawing Vertical Band Saw machines

Main features of the machine

● Feeding material adopt dual bilinear guide rail with high precision, low abrasion and long lifetime.

● Work piece feeding adopt transducer step less adjustable , feeding stable.

● Can install hydraulic feeding material flat, convenient to material feed.

● Work table design is reasonable, convenient for change blade.

PREV：G5350/110-260 G5360/40-100 High Speed Rotation CNC Beam Band Sawing Machine Servo Motor Power HydraulicNEXT：No next article

Product Description

Contact Form

Metal Steel Cutting Sawing Vertical Band Saw machines are based on the friction between the saw band and the workpiece. The high-speed rotation of the saw band transfers mechanical force to the metal workpiece, and through continuous cutting and friction, the workpiece is gradually cut into the desired shape. The cutting part of the saw band is made of high-strength steel belt, and the belt teeth are specially treated to ensure that it can cut metal materials of various hardness. Unlike other types of band saw machines, the saw band of the vertical band saw is perpendicular to the workpiece. This structure effectively reduces deformation and vibration during the cutting process. The machine adopts an advanced servo control system, combined with a high-precision saw band tensioning device and a multi-functional feeding system, which can achieve precise cutting control and ensure the cutting accuracy of each metal workpiece. The equipment reduces energy consumption through optimized design, while reducing noise pollution and metal dust during the cutting process, meeting modern environmental protection requirements.

Products brand

Max process
dimension(mm)

Blade process
speed(m/min)

Work tensioning form

Blade specification
(mm)

Power of main
motor(kw)

Load-bearing capacity
of the working table(kg)

Packing size(mm)

G5360/80-260

600×800×2600
(Height × Throke × Stroke)

18-80 Frequency stepless speed regulation

Manual

1.3×41×6660

7.5

10000

3900×3250×3160

G5385/100-350

850×1000×3500
(Height × Throke × Stroke)

18-80 Frequency stepless speed regulation

Manual

1.6×54×7080

11.0

20000

5100×4100×3500
