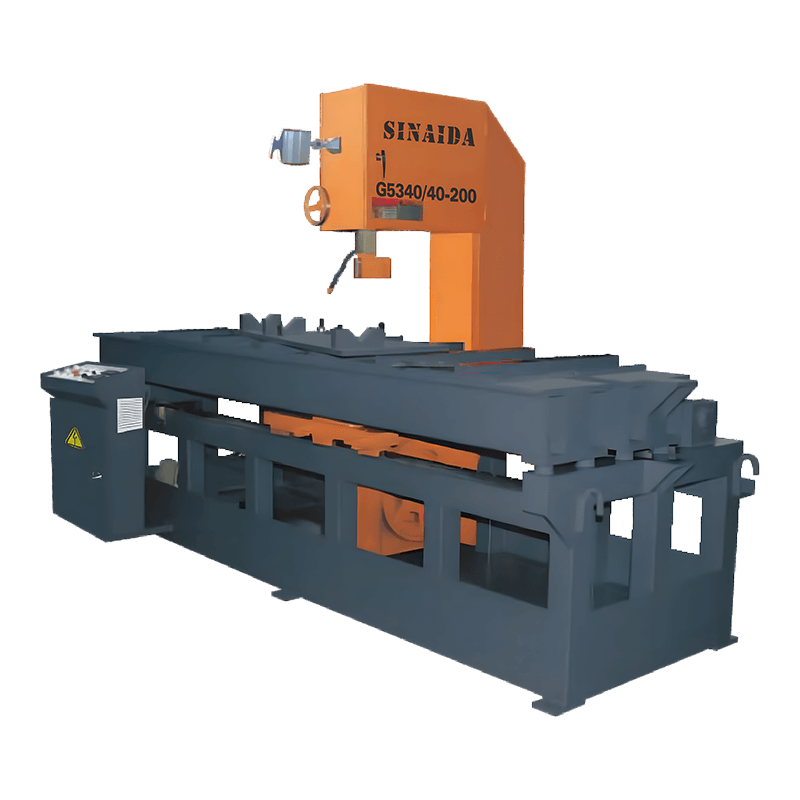

G5335/35-100 G5340/40-200 High Quality Vertical Metal Band Sawing Machine

Main features of the machine

● Feeding material adopt dual bilinear guide rail with high precision, low abrasion and long lifetime.

● Work piece feeding adopt transducer step less adjustable , feeding stable.

● Can install hydraulic feeding material flat, convenient to material feed.

● Work table design is reasonable, convenient for change blade.

PREV：No previous articleNEXT：G5350/110-260 G5360/40-100 High Speed Rotation CNC Beam Band Sawing Machine Servo Motor Power Hydraulic

Product Description

Contact Form

High Quality Vertical Metal Band Sawing Machine is equipped with a user-friendly control panel, which is easy and intuitive to operate. The operator can quickly set cutting parameters such as cutting speed, feed speed, etc. as needed. Through touch screen operation, the working status of the machine can be monitored in real time to ensure the safety and efficiency of the cutting process. It also has a high degree of automation functions, including automatic feeding, automatic cutting, automatic nesting, etc., which greatly improves production efficiency and reduces manual intervention. The operator only needs to perform a small amount of operation to complete the entire cutting process. In metal processing plants and machinery manufacturing industries, this band saw machine is widely used to cut various metal materials, especially parts that require fine cutting, such as shafts, pipes, plates, etc.; it is also commonly used in the automobile manufacturing process to cut metal parts such as body structures, engine parts, chassis, etc. to ensure accuracy and quality.

Products brand

Max process
dimension(mm)

Blade process
speed(m/min)

Work tensioning form

Blade specification
(mm)

Power of main
motor(kw)

Load-bearing capacity
of the working table(kg)

Packing size(mm)

G5335/35-100

300×350×1000
(Height × Throke × Stroke)

25/40/60

Manual

1.1×34×3750

3.0

3000

2600×1180×1950

G5340/40-200

400×400×2000
(Height × Throke × Stroke)

30/45/60/80

Manual

1.1×34×4080

4.0

5000

3600×1250×2100

Get in touch

Contact us for free quotes and more expertise on the machine. Your project will find the right solution through us.
