S-650Z Horizontal Rotary Angle Cutting Metal Miter Cutting Band Saw Machine

Main features of the machine
● CNC band saw machine series applies to large batches same material at the same time, it has the advantage of high cutting speed, high efficiency, stability, energy-saving, and saving material. This can be expected with a small beam clamping device.
● Adopt manual operation, full-automatic, and matches the emergency off device function. hydraulic feed-in and tight clamping work, stepless adjustable, Automatic shutdown protects equipment.
● Man-machine interface replaces the function of traditional control panel, digital setting, indicator lamp etc. display the equipment state, operation instruction, and parameter setting. All the settings can be finished on the man-machine interface, all the information is in English, convenient to operate.
● PLC (programmable logic controller) sets the cutting /sawing process automatically.
● Feeding length of work piece uses grating ruler, to tolerance less than 0.2mm, can set 5 group sawing parameters at once.
● Can add the rotating angle function as customers requests.
PREV：S-320Z Automatic CNC Angle Metal Cutting Band Saw machineNEXT：No next article

Product Description

Contact Form

Horizontal Rotating Rotary Angle Cutting Metal Miter Cutting Band Saw Machine adopts a horizontal rotation design, which can flexibly adjust the cutting angle. The operator only needs to adjust the workbench of the machine to achieve precise control of the cutting angle. Compared with the traditional fixed-angle band saw machine, the horizontal rotation design significantly improves the flexibility and accuracy of cutting, making complex bevel cutting tasks easier. The machine is equipped with an adjustable angle function, which supports a maximum cutting angle adjustment between 45°-90°. Through precise mechanical structure control, it ensures that the cutting stability and accuracy can be maintained at different angles. The adjustment of the cutting angle is easy to operate and can meet the needs of a variety of metal materials. It uses a high-strength alloy band saw with super cutting ability and wear resistance. It is particularly suitable for metal materials with higher hardness, such as stainless steel, alloy steel, cast iron, etc. Its sharp teeth and uniform tooth pitch design effectively reduce the vibration and noise during cutting, and improve cutting accuracy and efficiency.

Products brand

Max process
dimension(mm)

Blade process
speed(m/min)

Work tensioning form

Blade specification

(mm)

Power of main

motor(kw)

Power of Oil-pump

motor(kw)

Machine size(mm)

S-650Z

Height 650
Width 650

22/40/60

Hydraulic

1.3×41×7000

5.5-6

1.5

3300×2000×2250

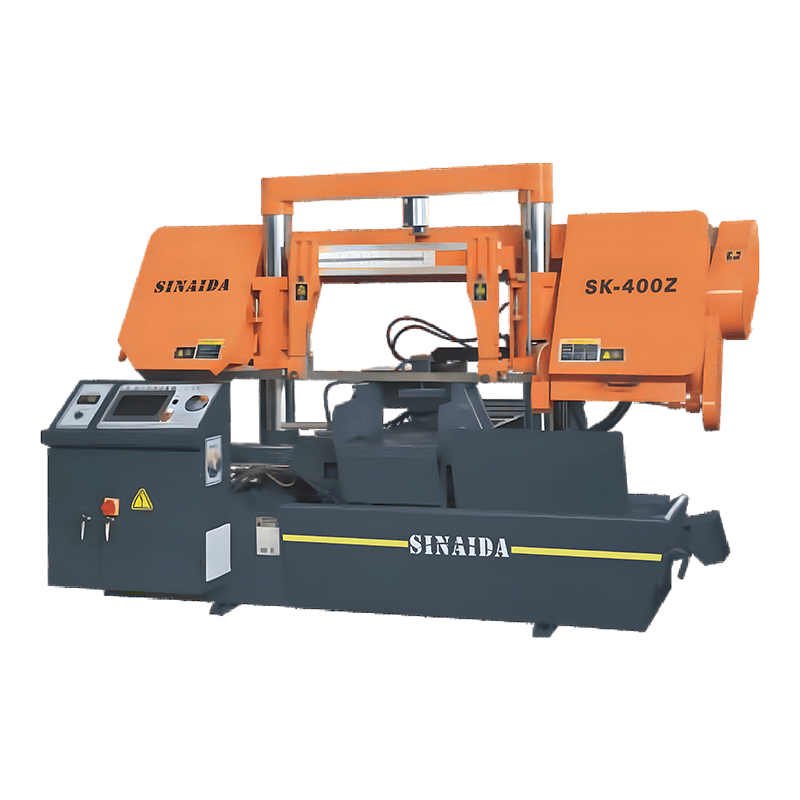

 SK-400Z

Height 400
Width 400

30/45/60/80

Hydraulic/Manual

1.3×41×5800

4.0-6

1.5

3000×2000×1750

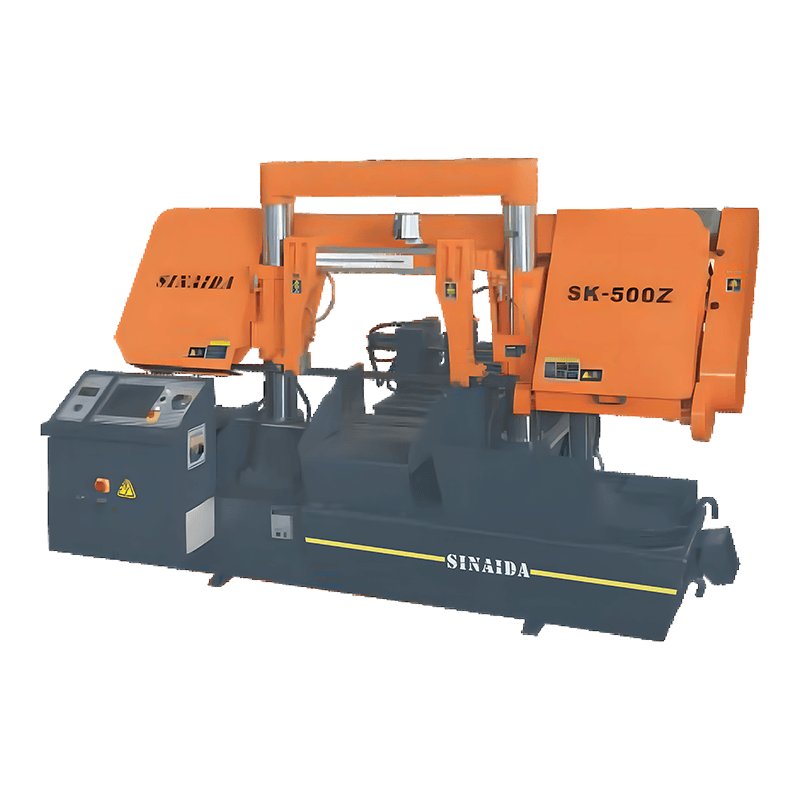

 SK-500Z

Height 500
Width 500

30/45/60/80

Hydraulic/Manual

1.3×41×6510

5.5-6

1.5

3250×2000×1950
