S-320Z Automatic CNC Angle Metal Cutting Band Saw machine

Main features of the machine

● CNC band saw machine series apply to large batch same material cutting at the same time, it is havethe advantage of high cutting speed , high efficiency , stable , energy-saving , saving material . Can be expected with a small beam clamping device.

● Adopt manual operate , full-automatic and matches emergency off device function . hydraulic feed-in and tightclamping work, stepless adjustable, Automatic shutdown protect equipment.

● Man-machine interface replace the function of traditional control panel, digital setting , indicator lamp etc. display the equipment state , operation instruction and parameter setting All the setting can finish on the man-machine interface, all the information are English , convenient to operate.

● PLC (programmable logic controller) set the cutting /sawing whole process automatically.

● Feeding length of work piece uses grating ruler, to lerance less than 0.2mm, can set 5 group sawing parameter by once.

● Can add the rotating angle function as customers requests .

PREV：No previous articleNEXT：S-650Z Horizontal Rotary Angle Cutting Metal Miter Cutting Band Saw Machine

Product Description

Contact Form

Automatic CNC Angle Metal Cutting Band Saw Machine is equipped with an advanced CNC control system. The operation interface is simple and intuitive, and it can achieve highly automated operation. Users can input cutting parameters through the touch screen, and the machine automatically adjusts the cutting speed, cutting angle, and feed speed. This device supports cutting angle adjustment from 0° to ±45°, and is suitable for metal cutting tasks at various angles. Whether it is straight cutting or bevel cutting, the band saw machine can accurately control the angle to ensure that the cutting surface is flat and smooth, greatly improving production efficiency and processing accuracy. This band saw machine adopts an efficient band saw cutting system with extremely high cutting speed and long blade band service life. The band saw machine effectively reduces the wear on the band saw during the cutting process through optimized tension control and band saw guide design.

Products brand

Max process
dimension(mm)

Blade process
speed(m/min)

Work tensioning form

Blade specification
(mm)

Power of main
motor(kw)

Power of Oil-pump
motor(kw)

Machine size(mm)

S-320Z

Height 320
Width 320

30/45/60/80

Hydraulic/Manual

1.1×34×4115

4.0

0.75

2100×1990×1550

S-420ZA

Height 400
Width 400

19/30/45/55/70

Hydraulic/Manual

1.1×41×5040

4.0-6

0.75

2520×2000×1620

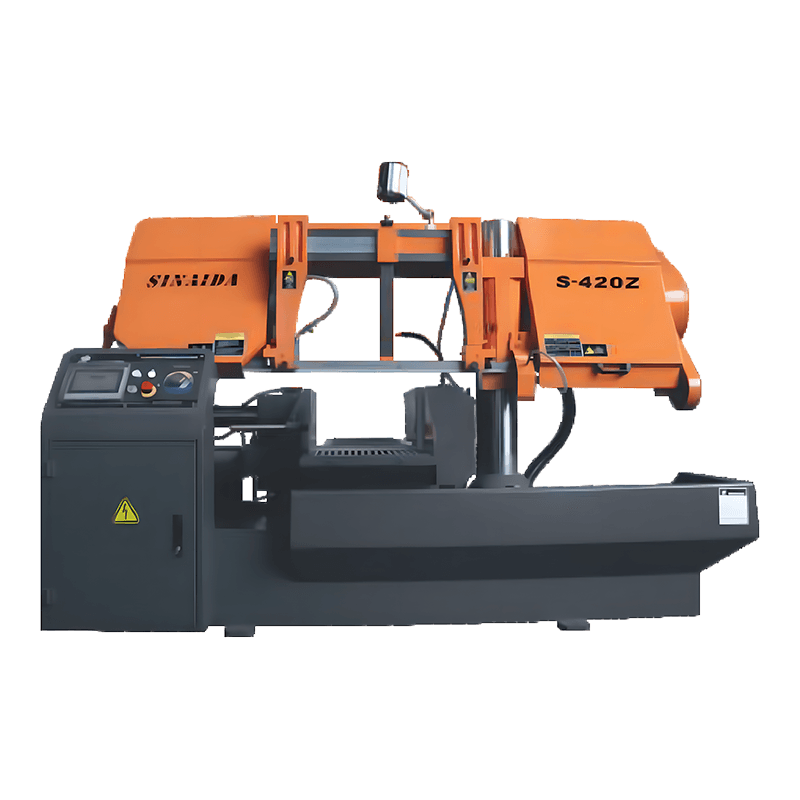

S-420Z

Height 400
Width 400

19/30/45/55/70

Hydraulic/Manual

1.1×41×5040

4.0-6

0.75

2520×2000×1620

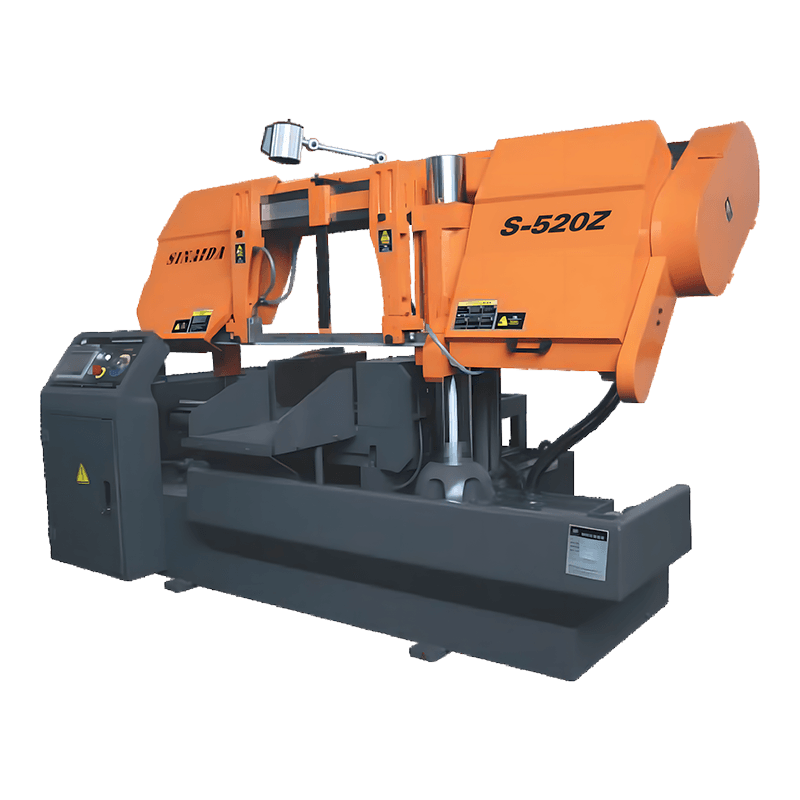

S-520Z

Height 500
Width 500

23/44/70

Hydraulic/Manual

1.3×41×5880

4.0-6

1.5

2900×2000×1900
